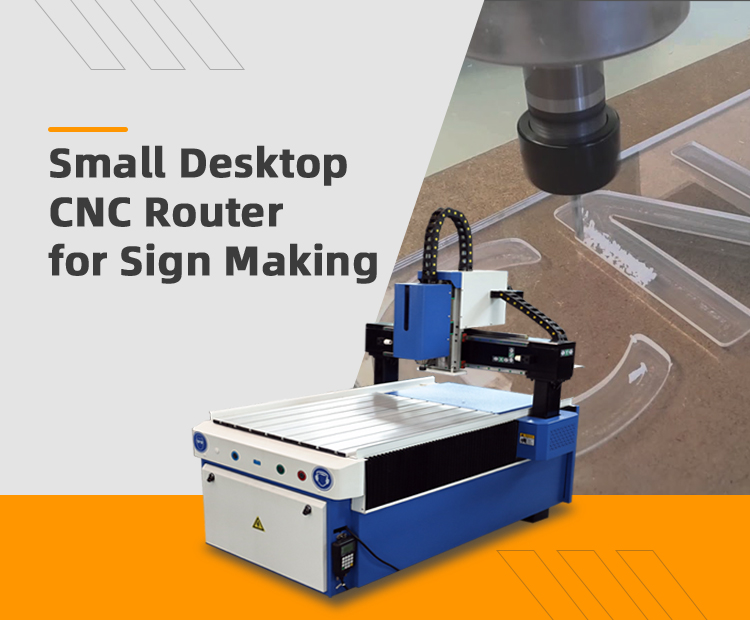

Moel No. | LR-6090 | LR-6012 | LR-6015 | Customized |
Working size | 600*900mm | 600*1200mm | 600*1500mm | √ |
Z-axis clearance | 120mm | √ | ||
Repeatability | ±0.03mm | × | ||
Drive system X and Y-axis | Helical rack and pinon | × | ||
Drive system Z-axis | ball screw | × | ||
Guide rails | 20/25mm linear ball-bearing profile rails(HIWIN/PMI/THK) | √ | ||
Motor & drive | Leadshine stepper motor/YASKAWA(DELTA/FUJI)servo motor | √ | ||
Spindle | 2.2KW~6.5KW | √ |
