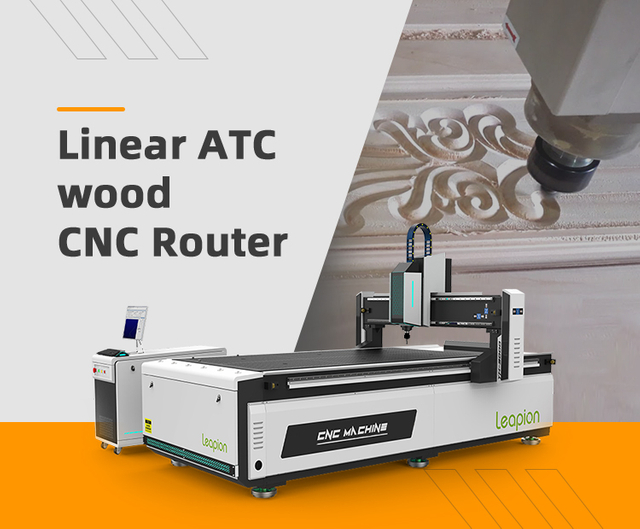

Home » Linear ATC wood CNC Router

EU design standards

All core accessories adopt top international brands, which can realize 5-year zero fault operation. As a very cheap ATC machine, this will be your first choice.

Why To Choose Atc Machine

6/8/12 ATC is available. 12 seconds for tool change. Greatly improved work efficiency and Multi process complex work can achieve unattended, one-time processing.

High Power Motorized Spindle Can Easily Process All Kinds Of Materials

wood/MDF/metal/PVC/plastic all common materials can be cut and engraved. 7.5KW/9KW/12KW are available.International standard ISO and F63 also no problem.

Servo Motor Is Standard Configuration

YASKAWA/Fuji/DELTA/Leadshine servo motor multi options. Ensure high precision and stable operation of the machine

Smart Control System

LNC control system based on computer operation mode more intuitive and simple. Manual Pulse Generator (MPG)
The MPG allows the operator to move around the machine, making for easy setup

Tool Sensor Makes Processing Accuracy Higher

Automatic tool calibration pad is designed for easily and accurately recording of tool length.

Technical Parameters

mm
inch

Moel No.	LR-1325AE	LR-1530AE	LR-2040AE	Customized
Working size	1300*2500mm	1500*3000mm	2000*4000mm	√
Z-axis clearance	200mm			√
Repeatability	±0.03mm			×
Drive system X and Y-axis	Helical rack and pinon			×
Drive system Z-axis	ball screw			×
Guide rails	20/25mm linear ball-bearing profile rails（HIWIN/PMI/THK）			√
Motor & drive	YASKAWA(DELTA/FUJI)servo motor			√
Spindle	7.5KW/9KW/12KW air cooling			√

inch

Moel No.	LR-1325AE	LR-1530AE	LR-2040AE	Customized
Working size	51*98inch	59*118inch	79*157inch	√
Z-axis clearance	7.9inch			√
Repeatability	±0.001inch			×
Drive system X and Y-axis	Helical rack and pinon			×
Drive system Z-axis	ball screw			×
Guide rails	0.8/1inch linear ball-bearing profile rails（HIWIN/PMI/THK）			√
Motor & drive	YASKAWA(DELTA/FUJI)servo motor			√
Spindle	7.5KW/9KW/12KW air cooling			√

What Materials Can Be Processed?

Aluminum
Acrylic
Wood
Plastic

UPGRADES

CNC router Machine upgrades,makes your machine more powerful.

Dust collector

3/4/5.5KW double bag high power vacuum cleaner,Make your working environment cleaner and safer

Vauum pump

air / oil-less vacuum pump . Faster and stronger fixation of materials to be processed

ATC CNC Router

Diameter 80-400mm extra rotation engrave your round products
