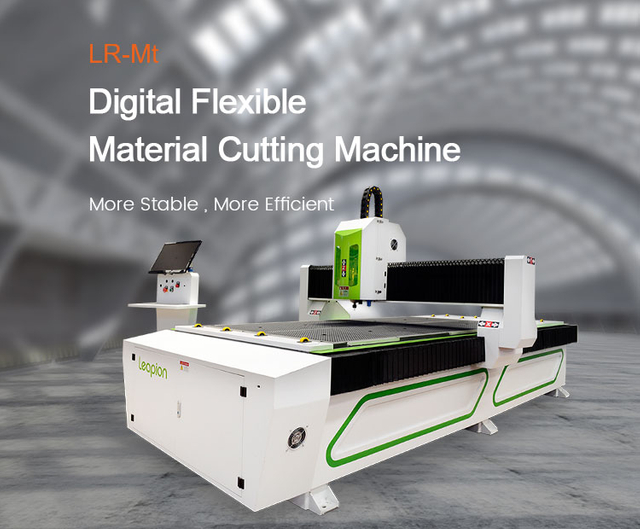

| Moel No. | LR-1325Mt | LR-1530Mt | LR-2040Mt | Customized | |||
| Working size | 1300*2500mm | 1500*3000mm | 2000*4000mm | √ | |||
| Z-axis clearance | 200mm | √ | |||||
| Repeatability | ±0.03mm | × | |||||
| Cutting accuracy | ±0.004mm (oscillating knife cutting) | ||||||
| Drive system X and Y-axis | Helical rack and pinon | × | |||||
| Drive system Z-axis | ball screw | × | |||||
| Positioning method | High-definition CCD camera、Automatic edge recognition | ||||||
| Guide rails | 20/25mm linear ball-bearing profile rails（HIWIN/PMI/THK） | √ | |||||
| Motor & drive | Leadshine stepper motor/YASKAWA(DELTA/FUJI)servo motor | √ | |||||
| Spindle | 3/4.5/6KW air cooling | √ | |||||
| Applied material: | KT board, PVC foam board, PP, sticker, acrylic, corrugated board, honeycomb board, corrugated plastic, grey board, paper, leather, blanket, MDF, aluminum composite sheet, insulating board, fiber cloth, medium fiber board, flag fabric, textile fabric,etc. | ||||||
| Moel No. | LR-1325ME | LR-1530ME | LR-2040ME | Customized | |||
| Working size | 51*98inch | 59*118inch | 79*157inch | √ | |||
| Z-axis clearance | 7.9inch | √ | |||||
| Repeatability | ±0.001inch | × | |||||
| Cutting accuracy | ±0.1mm (oscillating knife cutting) | ||||||
| Drive system X and Y-axis | Helical rack and pinon | × | |||||
| Drive system Z-axis | ball screw | × | |||||
| Positioning method | High-definition CCD camera、Automatic edge recognition | ||||||
| Guide rails | 0.8/1inch linear ball-bearing profile rails（HIWIN/PMI/THK） | √ | |||||
| Motor & drive | Leadshine stepper motor/YASKAWA(DELTA/FUJI)servo motor | √ | |||||
| Spindle | 3/4.5/6KW air cooling | √ | |||||
| Applied material: | KT board, PVC foam board, PP, sticker, acrylic, corrugated board, honeycomb board, corrugated plastic, grey board, paper, leather, blanket, MDF, aluminum composite sheet, insulating board, fiber cloth, medium fiber board, flag fabric, textile fabric,etc. | ||||||
